Accessing the partial charges context menu

General Discussion
1

Hi all,

I’m trying to view results of different population analysis schemes printed in an ORCA calculation via the partial charges label and the table found under Analyze > Properties > Atom Properties. According to the Avogadro 2.0.0 release announcement, there is a context menu through which you can specify the partial charge model to use. I had a look through the pull request for this feature on GitHub and through posts mentioning partial charges on this forum and still can’t work out how to access it.

Can someone please point me to this menu please?

2

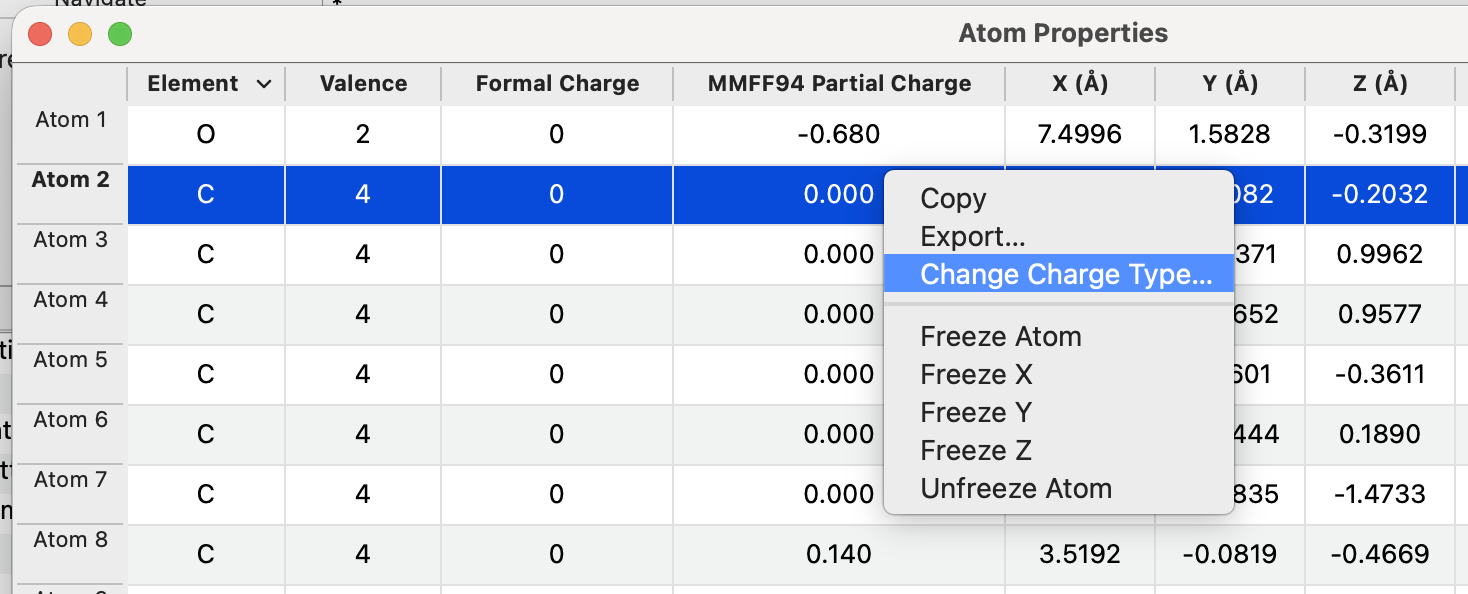

Yep. You right-click (or control-click on Mac) on the charge column:

Atom Properties
Atom Properties1468×594 93 KB

3

Thanks Geoff! Following on from this, is there a way to selectively show partial charges on certain atoms via the Label display type?

4

At the moment, no. It’s on the TODO for v2.1 though.
